Temperature Measurement and Disinfection Channel
RECOMMENDATION OF ‘TEMPERATURE MEASUREMENT AND DISINFECTION CHANNEL’
1.1 Introduction
1.2 Main Objective
1.3 Advantages
1.5 Performance Characteristics
1.6 Equipment Components Description
1.8 Maintenance
1.1 Introduction
The spread of the Corona Virus 19 and covid-19 outbreaks across the country is now alarming, even more serious when the World Health Organization (WHO) declares COVID-19 a pandemic.
As such, the government has taken smart and swift steps to control the outbreak by implementing the Movement Control Order. This has made a huge impact on all citizens especially in the day-to-day activities.
At the same time, there are a number of activities and businesses that need to be run as they usually involve companies / businesses that are categorized as essential services (‘Essential Service’). Accordingly, safety measures need to be taken into account from time to time in order for the covid-19 chain to be broken.
Today, smart temperature measurement and disinfection channel can be used for all types of public places to prevent the virus quickly and securely. This proposal is highly relevant in calling for the government to decide on the Covid-19 chain where focus will be given to Hospitals, Schools, Communities, Banks, Manufacturing Industries, Airports, Supermarkets, Hotels, Construction Sites, Terminal Stations and Exhibitions.
1.2 Main Objective
- Prevents and controls the spread of the Covid-19 outbreak.
- Prevent bacteria and viruses from entering the premises / areas around the control as well as viruses present on the surface.
- Identify the people entering the premises / areas around the controls to facilitate the identification of possible virus and bacteria in decomposing the outbreak chain.
- Identify and measure the temperature of the body entering the premises / control area to control and control virus / bacterial carriers.
1.3 Advantages
Temperature Measurement and Disinfection Channel
- This invention is created through observation and concern of the growing Covid-19 case and one of the steps in deciding the Covid-19 network.
- Reduces the risk of infection to the affected frontline.
- The invention is able to measure temperature very quickly.
- Have a fever alarm where temperature is set.
- Release Negative Ions for sterilization and disinfection.
- This machine not required supervision.
- Easy and integrated installation even mobile.
- Automatic Ultrasonic System.
1.4 Application Places
- Used in emergency public health events, body spray disinfection is carried out on objects, such as pets, goods and other objects passed through public space entrance, and body temperature is detected by non-contact detection.
- Temperature measurement inspection at airports, customs, ports, stations, schools,
factories, construction sites and other places.
- Entrance inspection of important public places such as important places, exhibition
halls, trade fairs, business activities, celebrations, stadiums, etc.
1.5 Performance Characteristics
1. Infrared human body temperature measurement, sound and light alarm
High precision infrared spectrum sensor, calibrated by blackbody radiation source,
can be used to measure body temperature remotely without contact, which can
effectively avoid cross infection, normal voice prompt of body temperature, voice
prompt of overheating alarm of body temperature.
2. Intelligent display
The temperature display can adjust the temperature difference of seasonal changes
and display the human body temperature more accurately.
3. hand washing intelligent spray disinfection
The temperature measuring area is equipped with intelligent induction sprayer. It has
no contact induction spray, is safe and sanitary, and can effectively disinfectate the
opponent’s part.
4. Automatic induction ultrasonic fog, stop when people walk
The equipment port is equipped with a microwave sensor, which can sense that
someone enters, start the fog maker automatically, spray disinfectant into the channel,
and stop automatically after leaving to avoid waste of liquid.
5. Equalizing spray box, thinning throttling, not damaging facial organs.
In the disinfection channel, a balanced spray method is adopted, which does not
directly spray the human facial organs. The fog is more refined and does not cause
waste.
6. Bottom circulating waste liquid tank, centralized collection of waste liquid
There is a circulation tank inside the disinfection channel, which can collect and
dispose the surplus disinfection liquid in a centralized way, so as to avoid the
pollution to the surrounding environment
7. Equipment status reminder function
The equipment has status reminders such as work, lack of liquid, light and voice, so
that the equipment management staff can accurately grasp the operation status of the
equipment. Real time trend of various personnel
8. Automatic fluid filling function
The equipment is equipped with a large capacity liquid storage tank with liquid alarm
function to avoid damage to the atomization equipment due to lack of liquid, and the
atomization tank is automatically filled with liquid and stops automatically, which can
meet the daily usage
9. External ramp pedal
Anti-skid pedal is set at the entrance and exit of the equipment, which is convenient
for the elderly, children, wheelchair and passengers to and from
10. Lighting auxiliary function
Fully considering the use of different scenes, LYD waterproof lamp is set in the
passage, which can be used at night or in a dark place
11. Quick layout and transfer function
There are four casters and brakes at the bottom of the equipment, which can quickly
arrive at the designated place for quick installation. The equipment uses 220V
household alternating current, and its function is less than 800W. The installation is
simple and fast. It only needs to connect the plug row and fill in the disinfectant
solution, without the installation and debugging of professional personnel. The
operation is simple, easy to learn and understand.

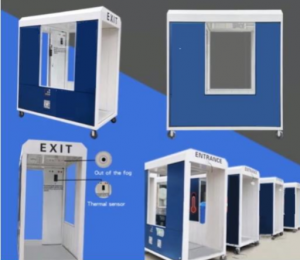

1.6 Equipment Components Description
Temperature Measurement and Disinfection Channel
Far infrared induction device
Control Panel
Inductive hand wanshing device
Electrical control box, disinfectant tank
Pedal
Disinfection area
1.7 Technical Parameters
A.
Power supply: 220V / AC
Weight: About 180kg
Power: 450W
Operating noise: less than 36dB
Working environment: 0 ℃ – + 35 ℃ (disinfectant can’t be used when it’s frozen below 0 ℃)
External dimension: 2400mm (H) × 1200mm (W) × 2000mm (L)
Channel size: 1950mm (H) × 1100mm (W) × 2000mm (L)
Type of disinfectant: food grade disinfectant
Volume of disinfectant tank: 20 L
Temperature collection distance: 15-20cm
Temperature collection time: about 2 seconds
Temperature collection accuracy: plus or minus 0.5 ℃ at room temperature
Temperature collection location: forehead, wrist inside (non-contact type)
Temperature collection range: 34-45 ℃
B) This equipment / machine is made and origin from factory in China.
C) The complete set will be imported from the factory and trouble-free installation.
1.8 Maintenance
|
Maintenance AM |
- Lifetime services: The company has several sales service offices in several cities in the country, providing long-term consulting, technical training, maintenance, sales, division of products and other services.
- Calibration for the cabin / engine box is run routinely every 3 months where it involves: –
- Engine Cabin / Box Cleaning
- Maintenance of Spray Nozzle
- Visual inspection of all electrical components inside or outside the cabin / engine box
- Regular inspection of control panel and motor engine used
- The Company will offer you an additional warranty after 6 months of use of the Equipment and it is optional and in accordance with the terms and conditions.
- All replacement parts are always ready stock. Customers / Consumers may contact the company anytime if the parts are damaged.
- After-sale customer service always communicate with customer / consumer when needed.
-
Warranty Maintenance (First Year)
- One-year warranty: users can enjoy one-year free warranty service provided by our company with a warranty whereby all damages incurred while under contract, the service fee will not be charged but does not include replacement accessories according to terms and conditions.
- Calibration for the cabin / engine box is run routinely every 3 months where it involves: –
- Engine Cabin / Box Cleaning
- Maintenance of Spray Nozzle
- Visual inspection of all electrical components inside or outside the cabin / engine box
- Regular inspection of control panel and motor engine used
- The company provides free installation and debugging services to users.
- Unexpected damage which involves accident, vandalism, abuse and any damage created by itself is not included in warranty and all replacement and service charges will be charged.
2.1 Stock and Delivery Time :
- Stock of goods is available but depends on availability and delivery within 3 to 5 weeks according to shipping schedule and also depends on documentation and customs clearance process.
- The complete set will be imported from China factory and installation is very easy and does not require competent skilled labor.
